- Max size 3000 x 1600 mm
- Min size 290 x 150 mm
- Speed from 20 - 250 m/Min.
- Works with solid board from 800 up to 2000 gr/m2, corrugated A, B, C,E,F,N
- Thickness of folded box max 35 mm
- Equipped for straightline, lockbottom and 4 + 6 corner gluing

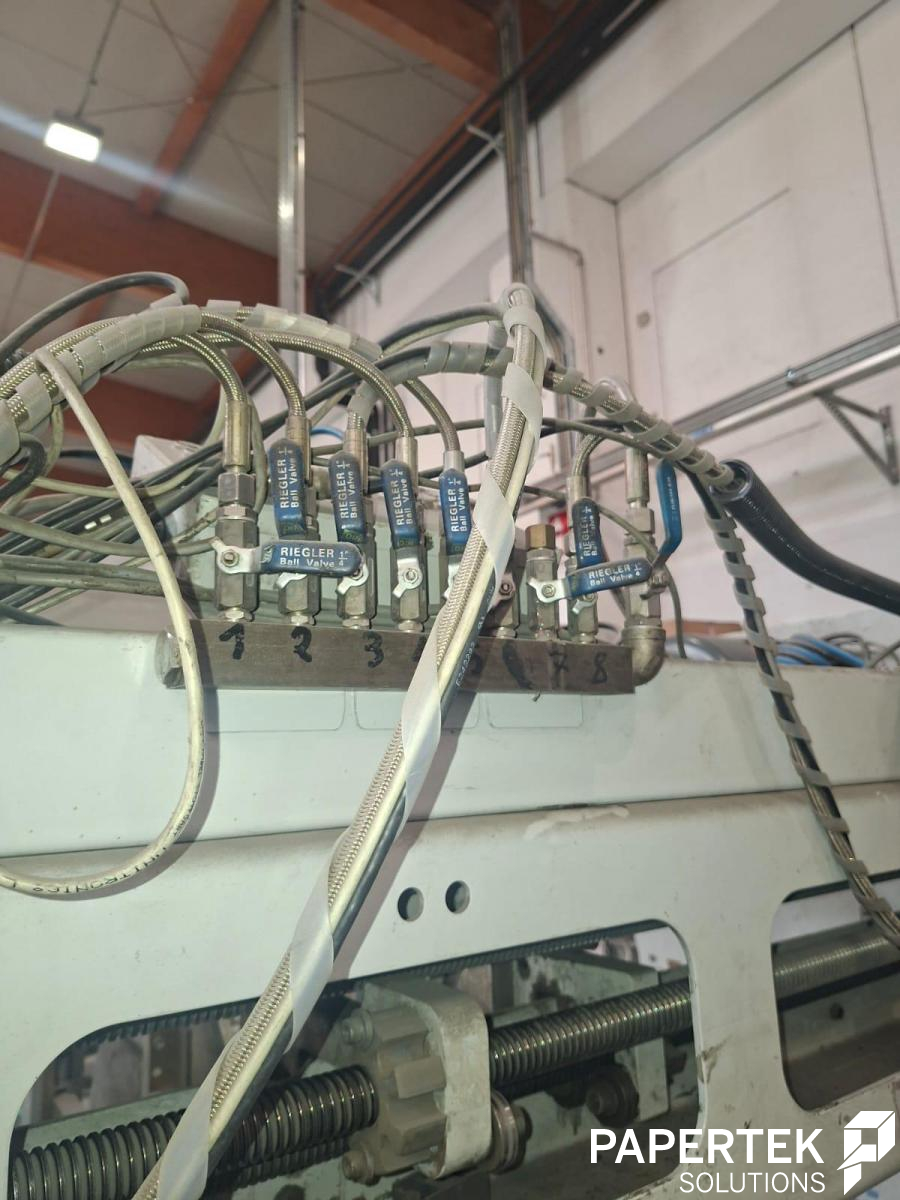

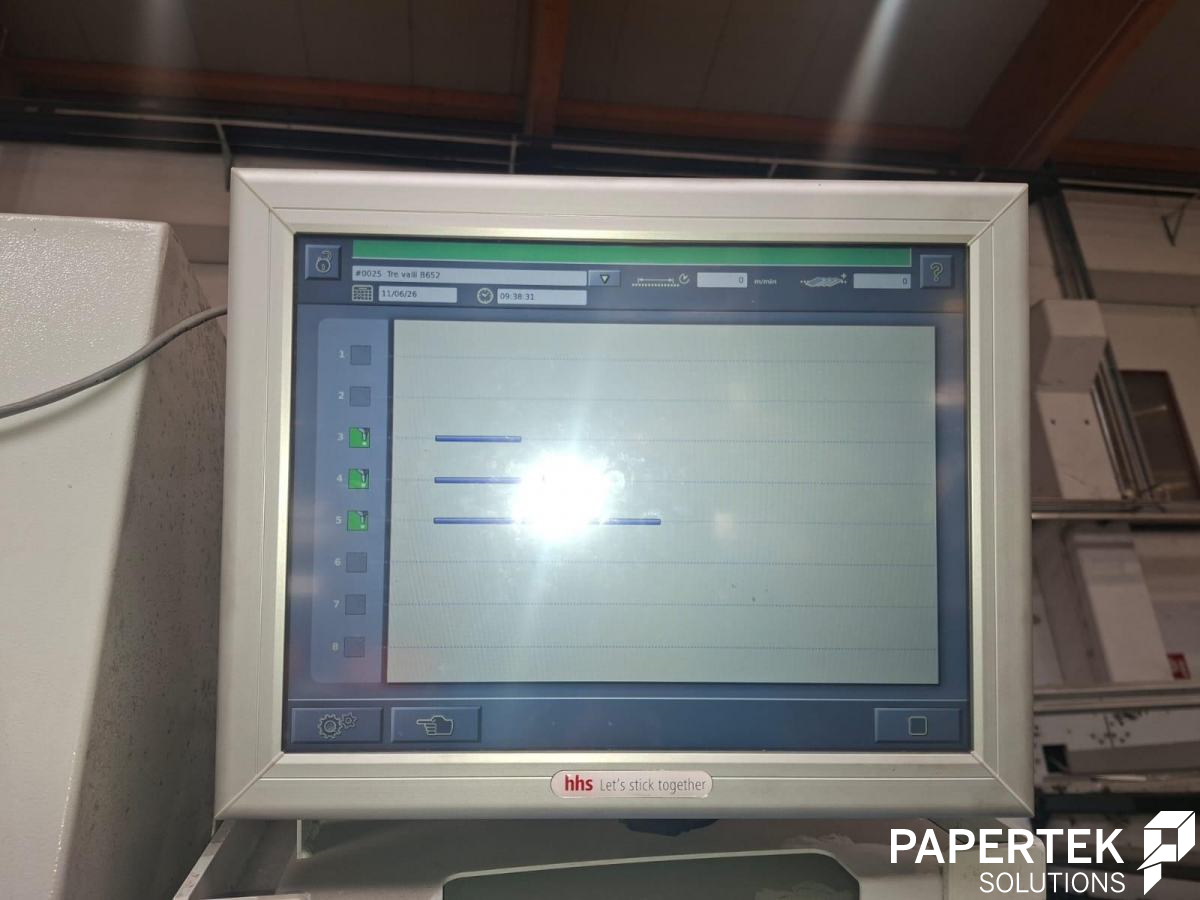

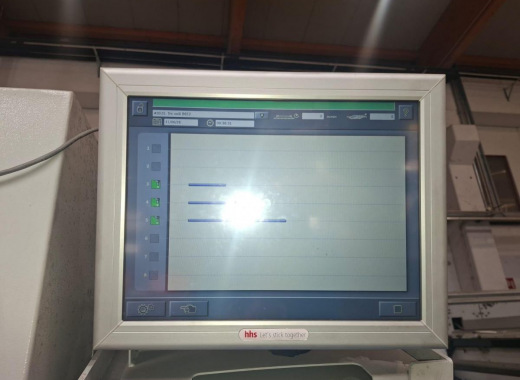

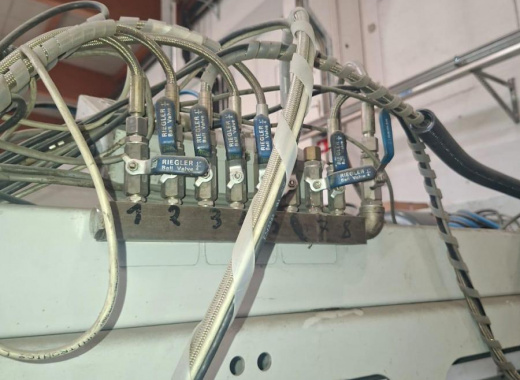

- HHS cold extrusion gluing system with 8 guns (3 of them with glue detection)
- Nordson-melt hot gluing system with 2 guns.

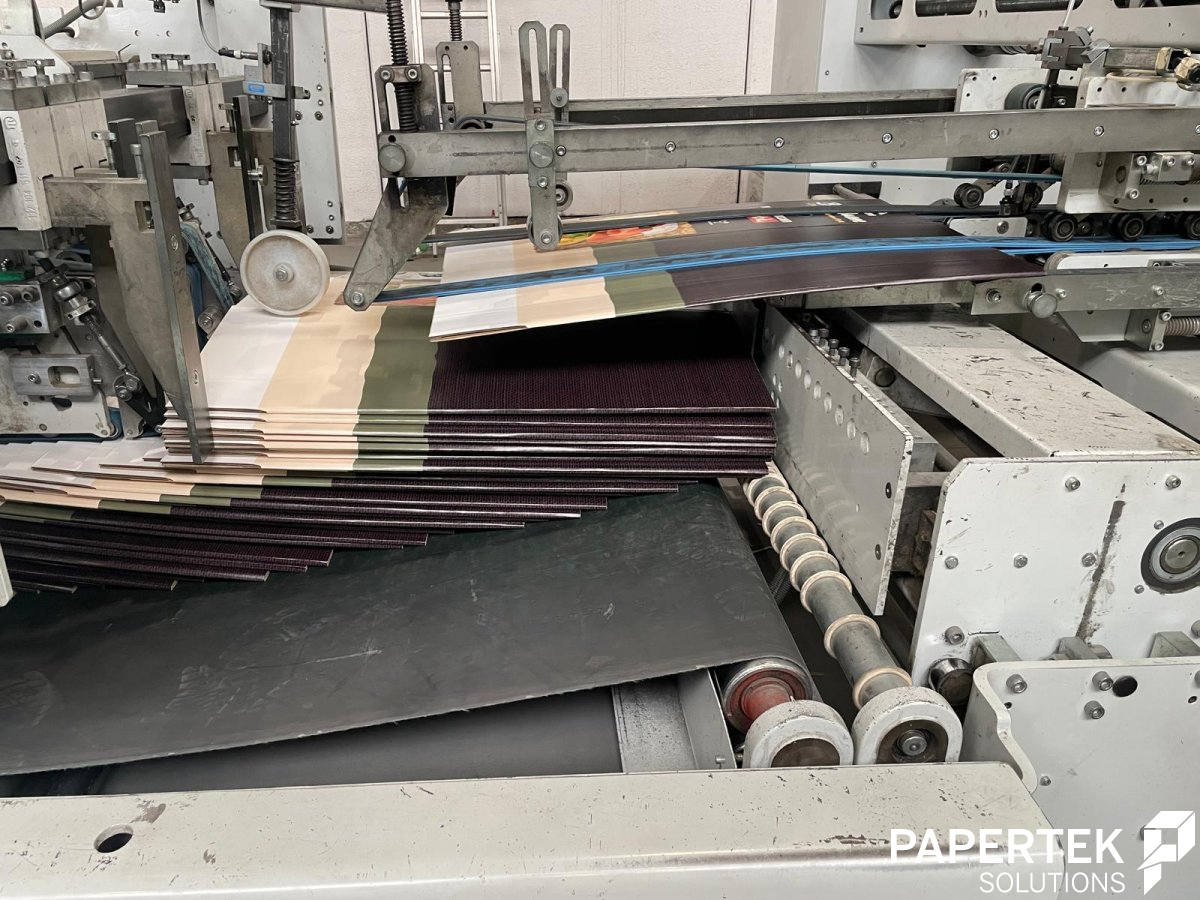

- Accufeed with blank alignment, squaring unit in the folding section and at the entry of the press station, additional press rollers
- Kicker, counter, UV-marker.

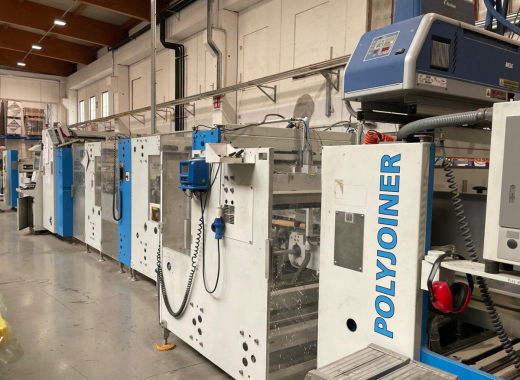

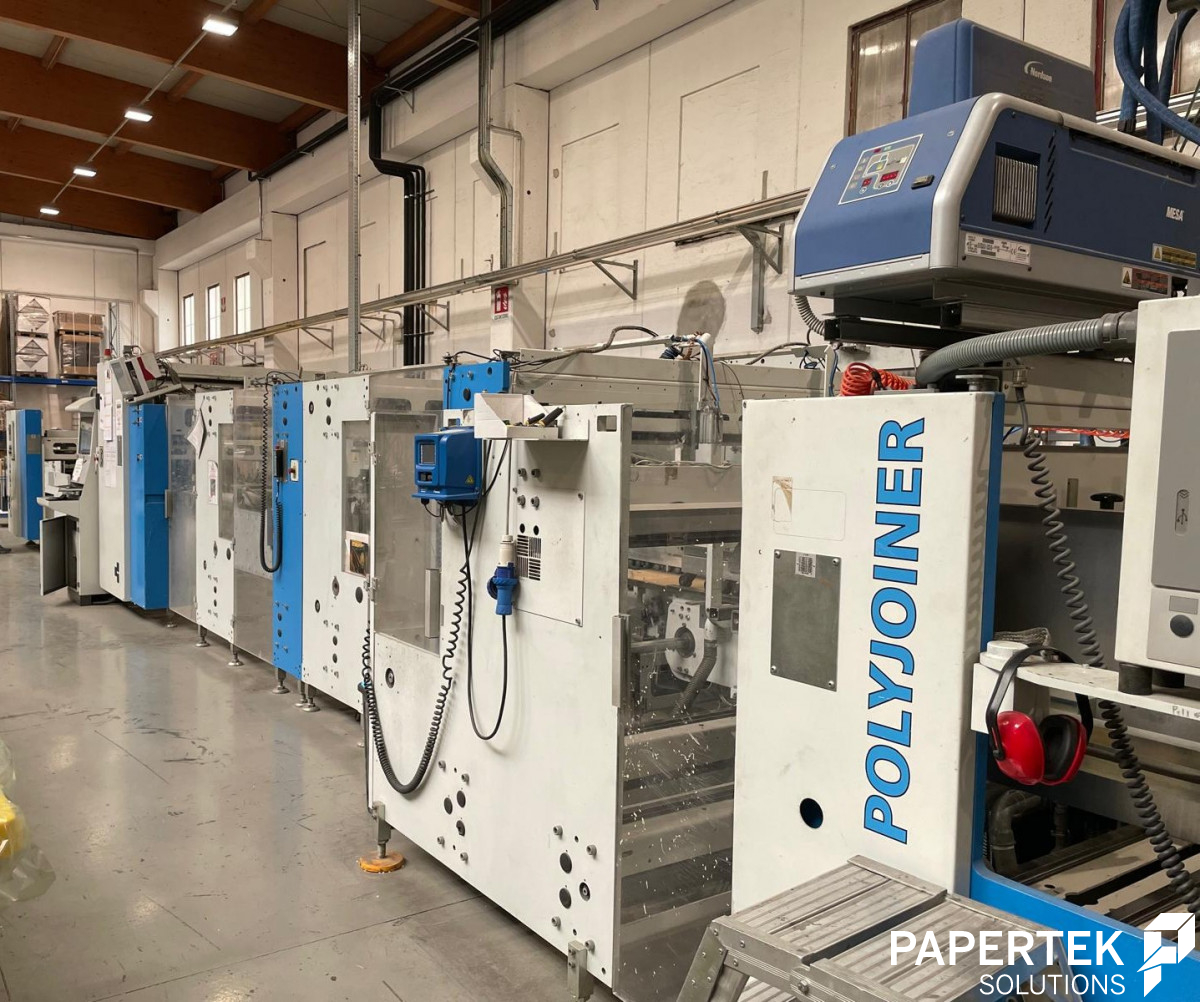

- POLYJOINER with HHS cold extrusion gluing system and Norson melt hot gluing system
- Machine can be seen under power upon request
|
